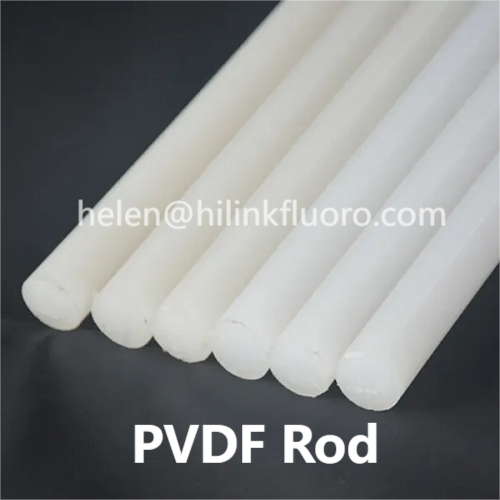

What Is PVDF Rod?

PVDF (Polyvinylidene Fluoride) Rod is a high-purity, non-reactive cylindrical product made from PVDF resin—one of the most versatile fluoropolymers available today. Unlike fully fluorinated polymers that can be difficult to process, PVDF is partially fluorinated, allowing for easy extrusion into thick cross-sections or large diameters without compromising structural integrity. This unique balance of processability and performance means PVDF Rod can be customized to fit specific project needs, from small precision components to large industrial parts.

What sets PVDF Rod apart is its ability to maintain consistency across diverse applications: it resists degradation from corrosive fluids, stands up to extreme temperatures, and meets strict regulatory standards (including FDA approval for food contact). Whether you’re building fluid handling systems, electronic insulators, or food processing equipment, PVDF Rod ensures long-lasting reliability and reduced maintenance costs.

Key Properties and Advantages

Exceptional Chemical Resistance

PVDF Rod demonstrates remarkable chemical inertness, resisting attack from strong acids, bases, and solvents. It withstands exposure to concentrated sulfuric acid (up to 98%), nitric acid, and other aggressive media, maintaining structural integrity where other materials would fail.

Thermal Performance

With a continuous service temperature from -40°C to 150°C and a melting point of approximately 172°C, our PVDF rods perform reliably in both high-temperature and cryogenic applications. The material maintains excellent mechanical properties even at elevated temperatures, with tensile strength retention exceeding 85% after 1000 hours at 150°C.

Electrical Properties

With a dielectric strength of 20kV/mm and volume resistivity of 1×10¹⁴ Ω·cm, PVDF Rod offers excellent electrical insulation properties, suitable for various electrical and electronic applications.

Mechanical Strength and Durability

High mechanical strength and stiffness

Excellent creep resistance

Good wear resistance and sliding properties

Bending strength ≥70MPa, compression strength ≥90MPa

High toughness maintained even at low temperatures

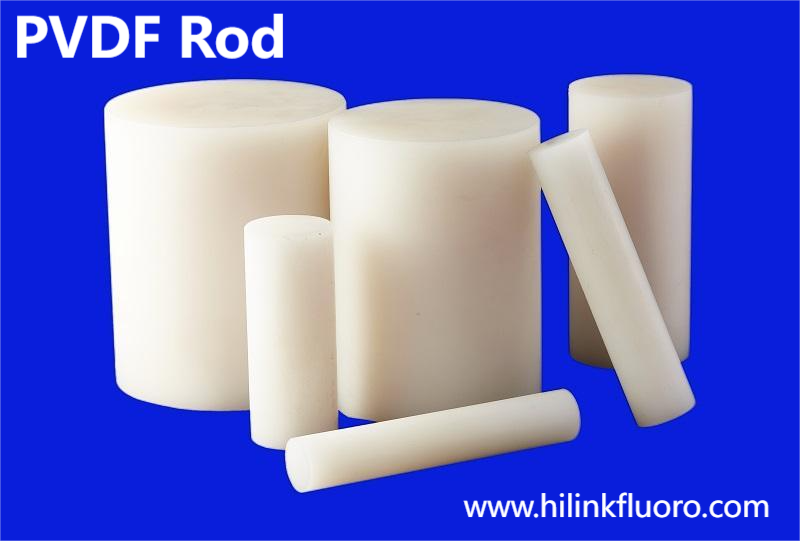

Available Sizes and Specifications

Standard diameters: 10mm to 200mm

Standard length: 1000mm

Color: Natural white

Tolerance: ±0.1mm diameter precision

Surface finish: Smooth

Custom sizes and specifications available upon your request.

Industrial Applications

Semiconductor and Electronics Industry

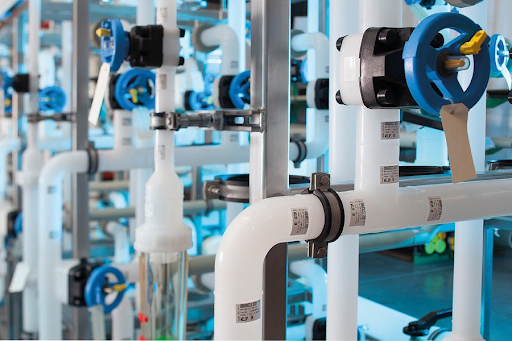

PVDF Rod is extensively used in semiconductor manufacturing equipment, particularly in ultra-pure water systems and chemical transport pipelines. Its purity and resistance to harsh chemicals like hydrofluoric acid and hydrogen peroxide make it ideal for wafer cleaning equipment and high-purity chemical storage systems.

Chemical Processing Equipment

The exceptional chemical resistance of PVDF Rod makes it perfect for:

Chemical pumps and valve components

Reaction vessel linings

Piping systems for aggressive chemicals

Storage tanks and heat exchangers

Food Processing and Pharmaceutical Applications

PVDF Rod is FDA compliant for food contact applications, making it suitable for:

Food processing machinery components

Pharmaceutical manufacturing equipment

Sanitary fluid handling systems

Electrical and Energy Sector

Insulating components in high-voltage applications

Battery components and energy storage systems

Solar energy equipment including photovoltaic cell etching trays

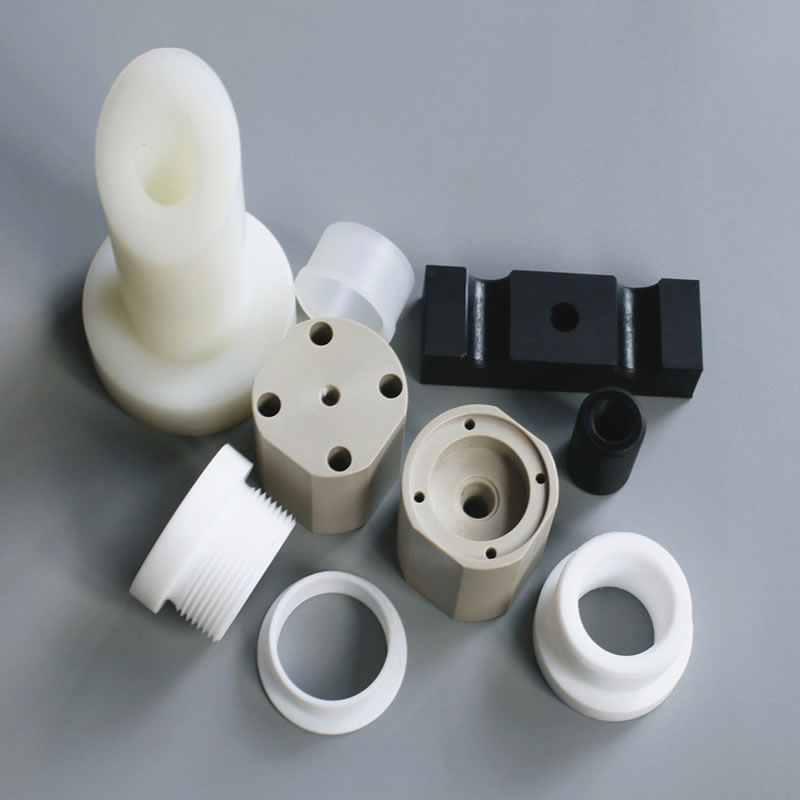

Mechanical and Automotive Applications

Gears, bearings, and wear pads

Seals and bushings

Chemical-resistant parts in automotive systems

Why Choose Our PVDF Rod?

Superior Material Quality: Manufactured from 100% virgin PVDF resin without additives

Precision Manufacturing: Tight dimensional tolerances ensured by advanced extrusion technology

Consistent Performance: Reliable mechanical and chemical properties across all production batches

Technical Expertise: Extensive application knowledge and custom solution capabilities

Global Sourcing: Reliable supply chain from leading international sources

Contact Us Today

For more information about our PVDF Rod products or to discuss your specific application requirements, contact our technical team today. We offer custom sizing and comprehensive technical support to help you optimize your designs and maximize performance.
